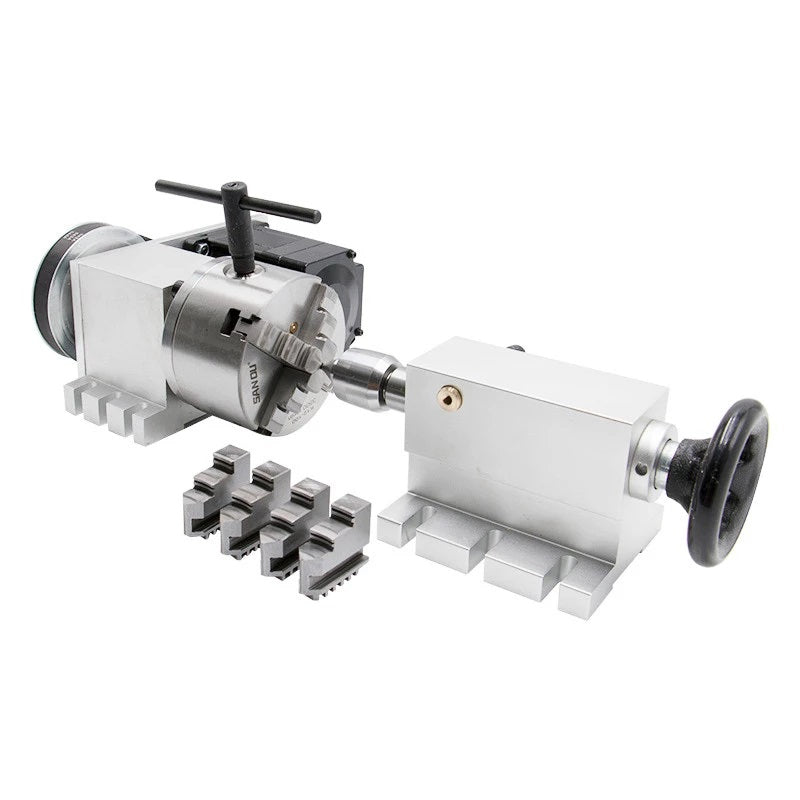

The 4th Axis Rotary Unit adds full rotational machining capability to your CNC system, allowing for cylindrical carving, indexing, rotary engraving, gear cutting, multi-sided machining, and more. Designed for stability and precision, this setup is powered by a NEMA 34 closed loop stepper motor, providing high torque, accurate positioning, and reliable performance under load.

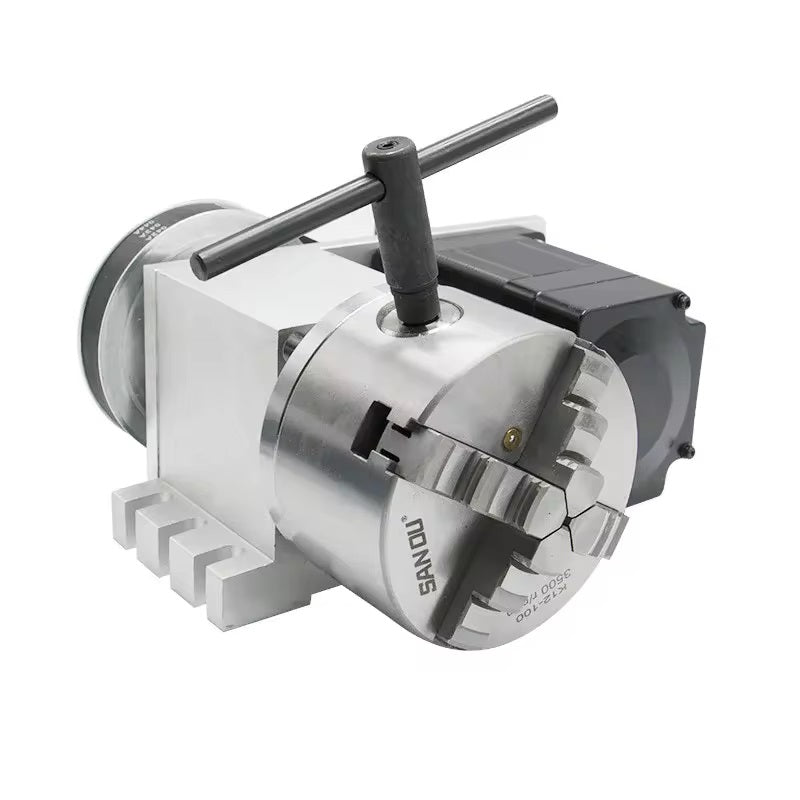

This unit features a 100mm K12 4-jaw chuck and tailstock support, making it suitable for gripping a wide range of workpiece sizes. A 4:1 reduction ratio delivers smooth rotation and enhanced torque control, while the included HBS86H Hybrid Servo Driver ensures zero-lost-step performance with encoder feedback.

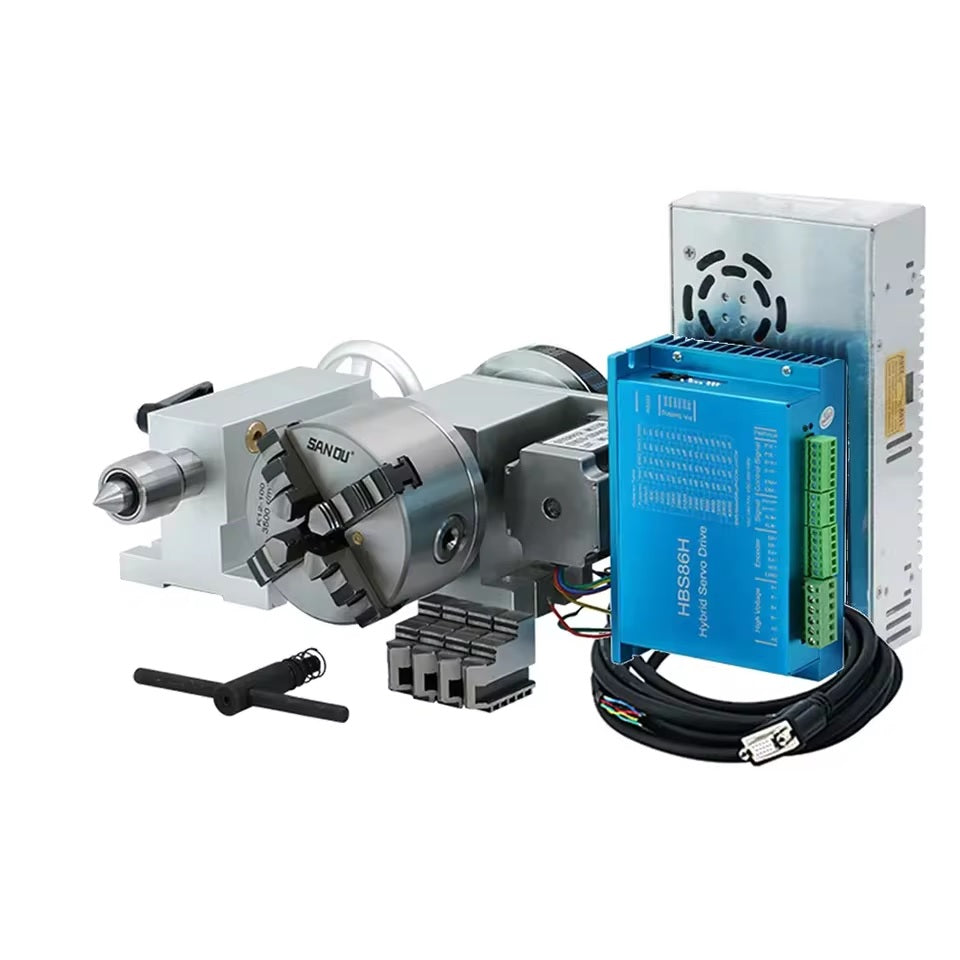

Includes: 4th Axis Rotary Unit, NEMA 34 4.5Nm Closed Loop Motor, HBS86H Driver + 3m Encoder Cable, 400W 60V Power Supply, 100mm K12 4-Jaw Chuck, Tailstock
Specifications:
-

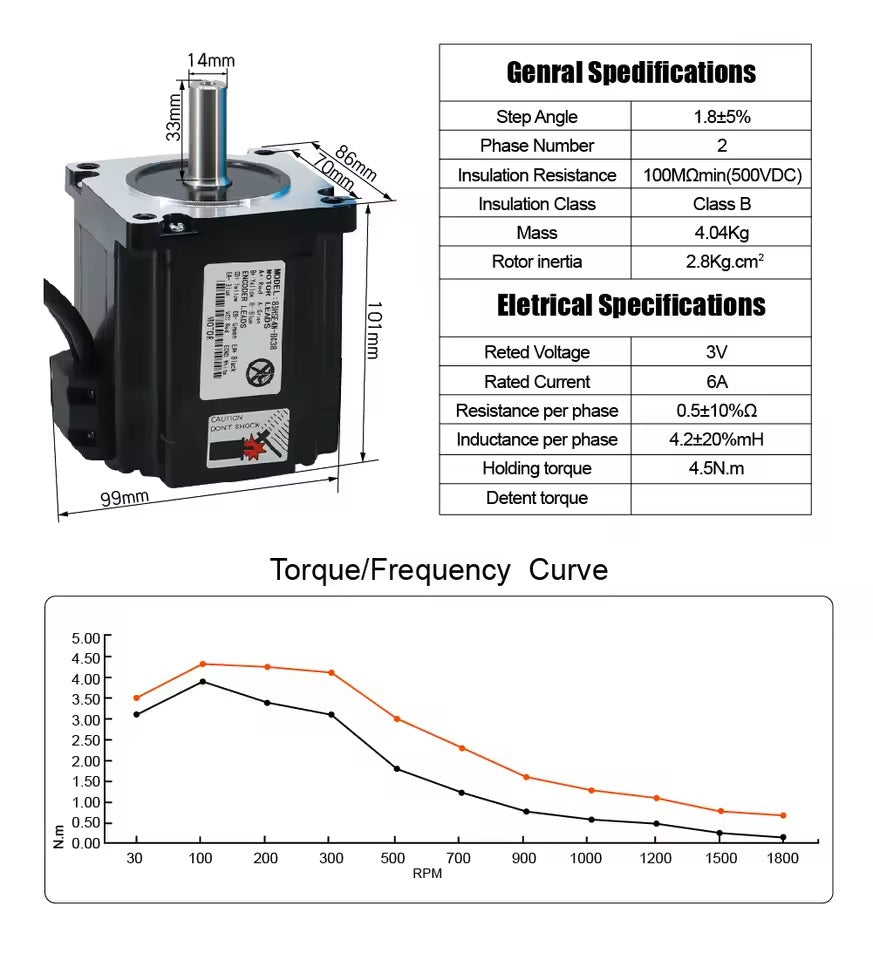

Motor: NEMA 34 Closed Loop (4.5Nm holding torque)
-
Driver: HBS86H Hybrid Servo Drive (includes 3m encoder cable)
-
Power Supply: 400W 60V DC
-
Chuck: K12 100mm 4-Jaw Chuck
-

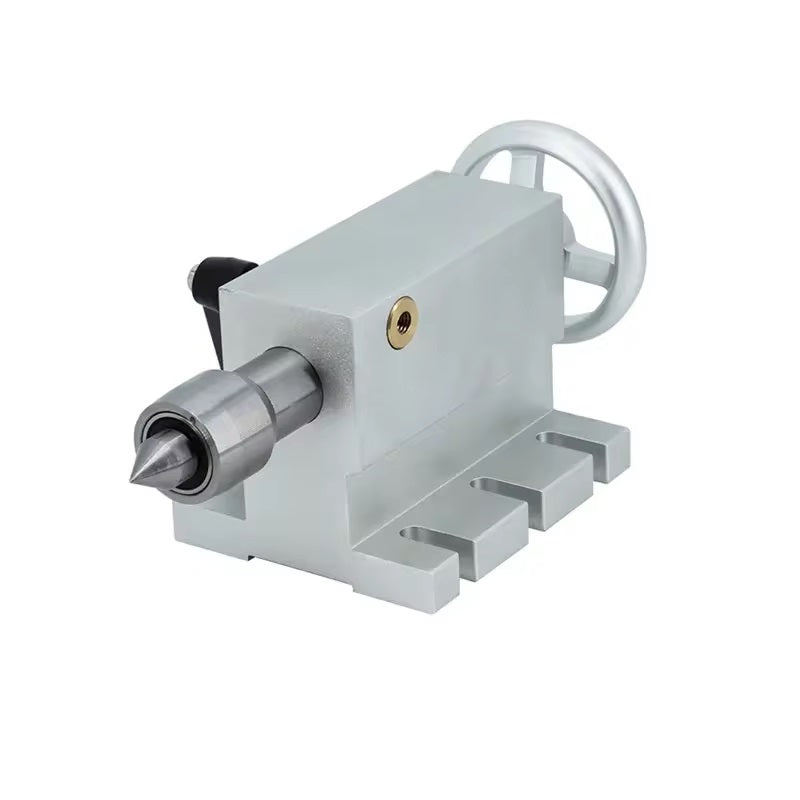

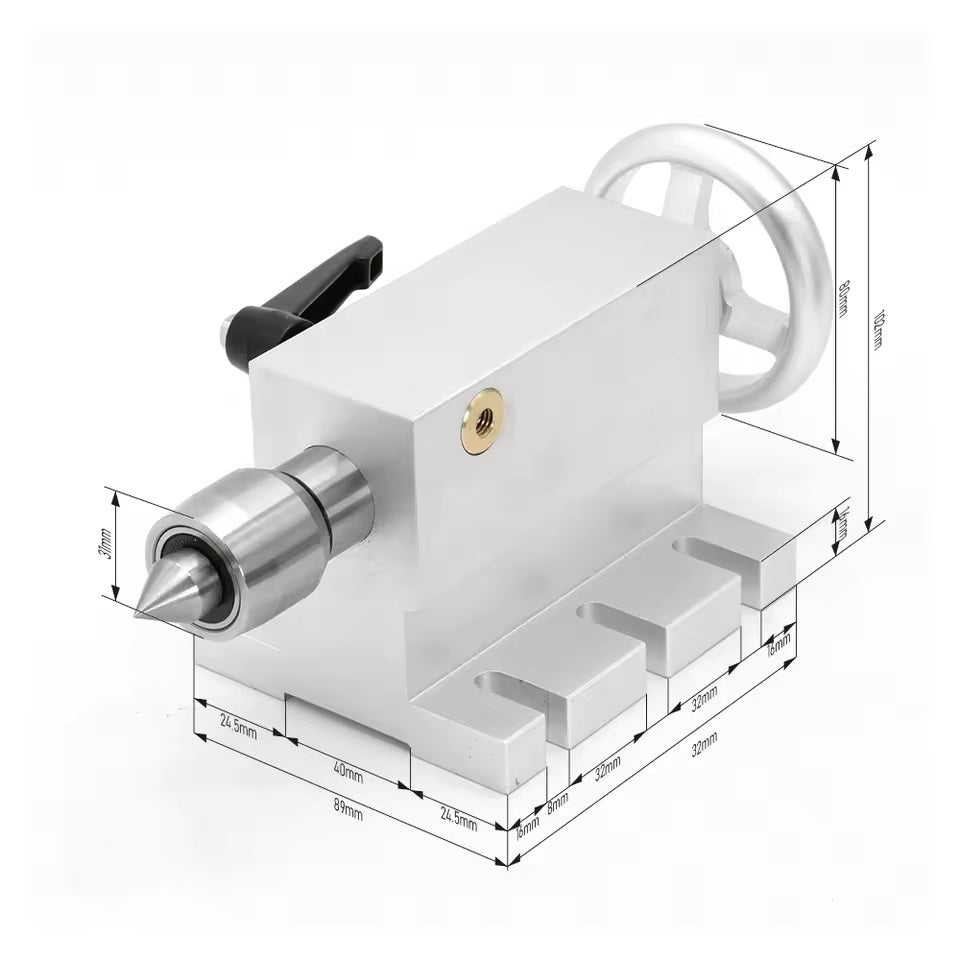

Tailstock: Included
-
Gear Reduction: 4:1 Ratio
-
Clamping Range:
-
Internal Grip: 2–30mm
-
External Grip: 30–80mm
-
-
Center Height: 65mm
-
Application: CNC A-Axis / Rotary Machining / Cylindrical Engraving
